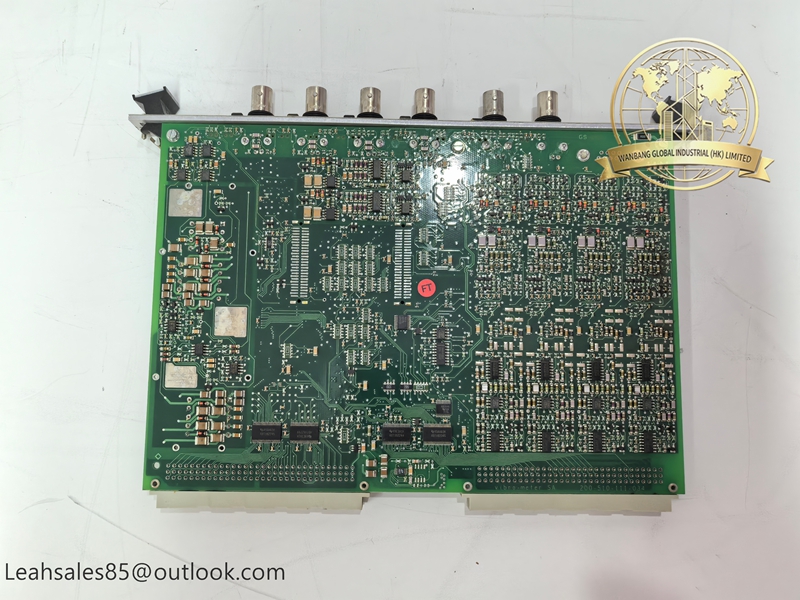

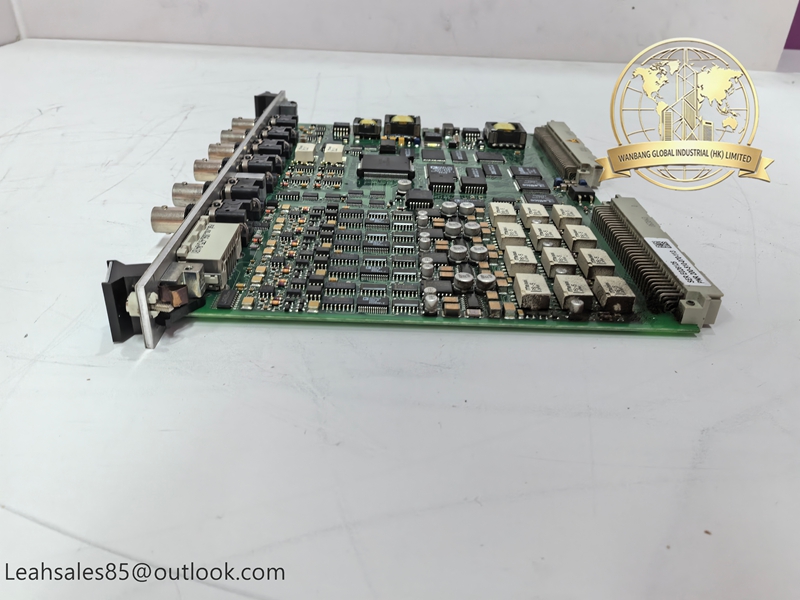

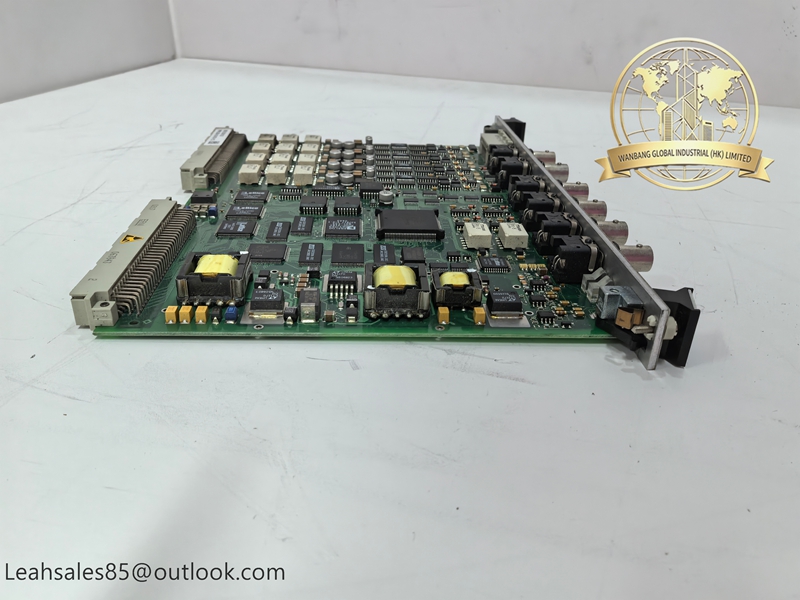

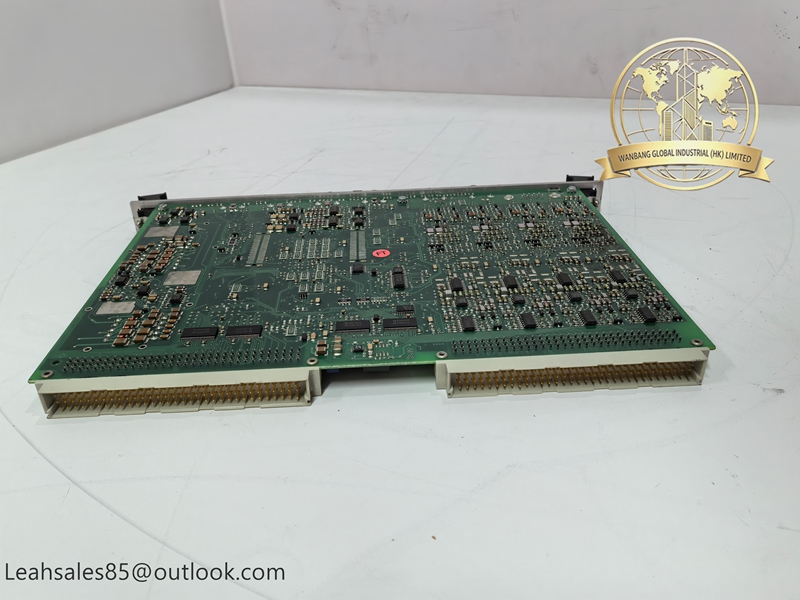

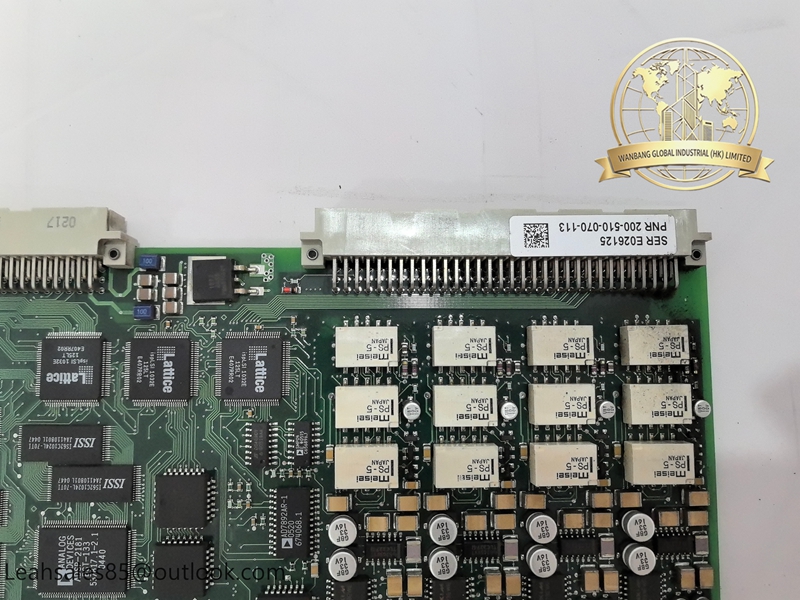

Vibro-Meter MPC4 200-510-111-034 VM600 4-Channel Machinery Protection Card

Products Introduction

Product Introduction

Vibro-Meter MPC4 200-510-111-034 is the core 4-channel machinery protection card of Meggitt Vibro-Meter VM600 machinery protection system. It supports 4 dynamic signal inputs and 2 tacho speed inputs, accepts proximity probe, accelerometer and velocity sensor signals. It calculates vibration, shaft displacement, thrust position and rotational speed, executes programmable alarm and trip protection logic, normally paired with IOC4T I/O card to output relay trip signals. Widely used for steam turbine, gas turbine and compressor protection cabinet maintenance and spare parts replacement.

Key Features

4 programmable dynamic signal input channels plus 2 tachometer speed channels
Supports vibration, shaft displacement, thrust position and dynamic pressure measurement
Onboard DSP processing, configurable alert and danger trip thresholds
Compatible with IOC4T I/O card for relay trip and analogue output
Hot-swappable design for VM600 rack without power shutdown

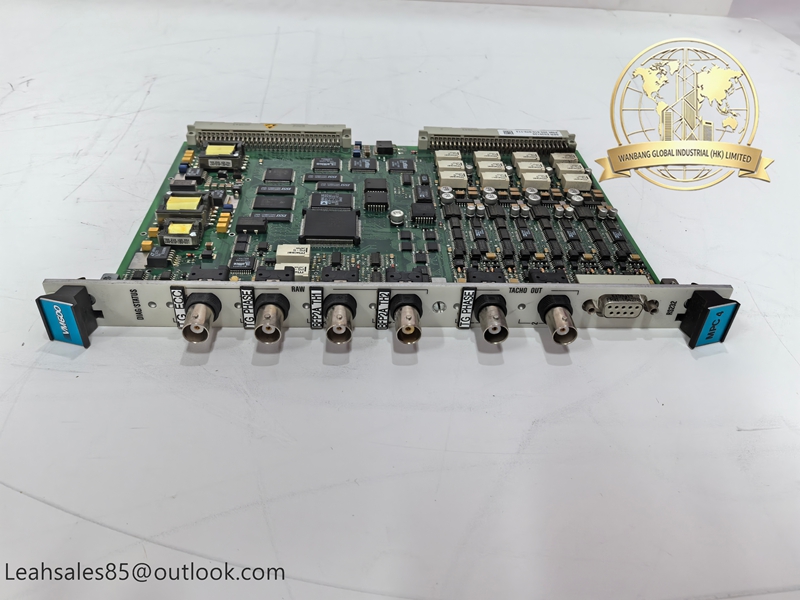

Front panel LED indicators for channel status and fault diagnosis

Technical Specifications
