Product Introduction

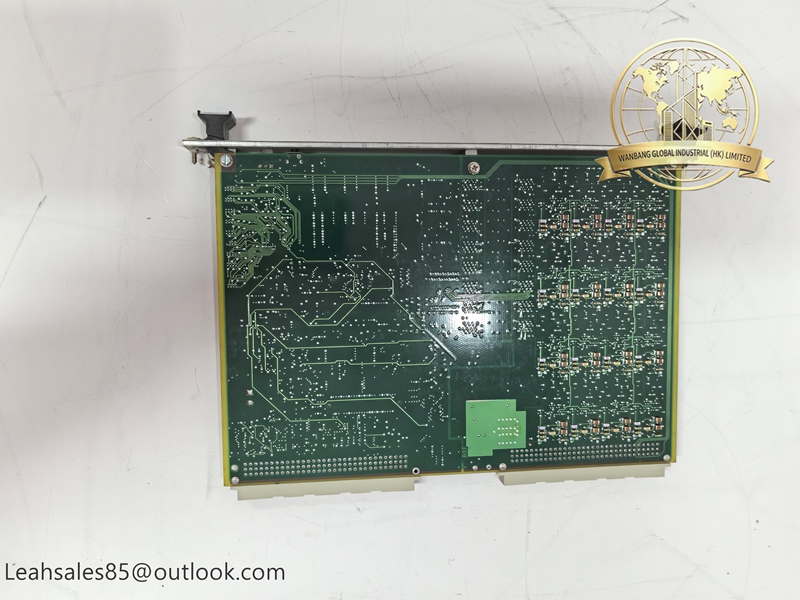

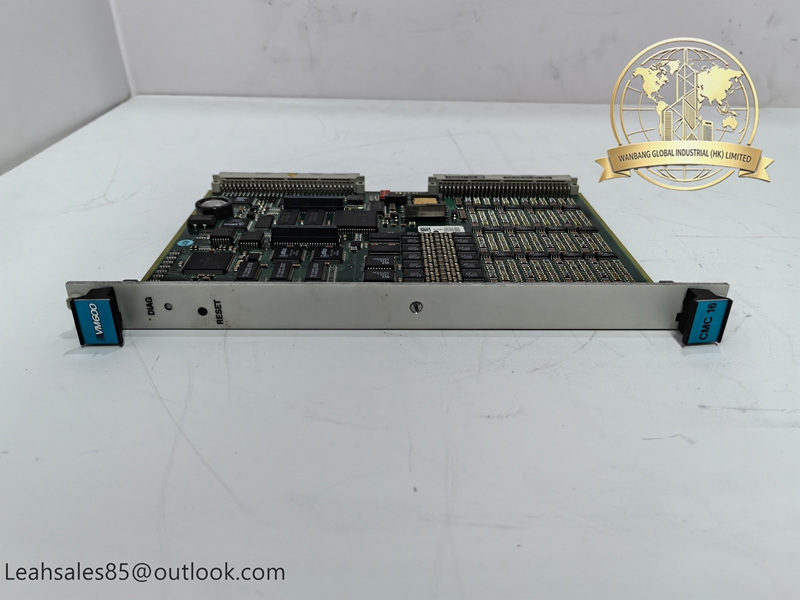

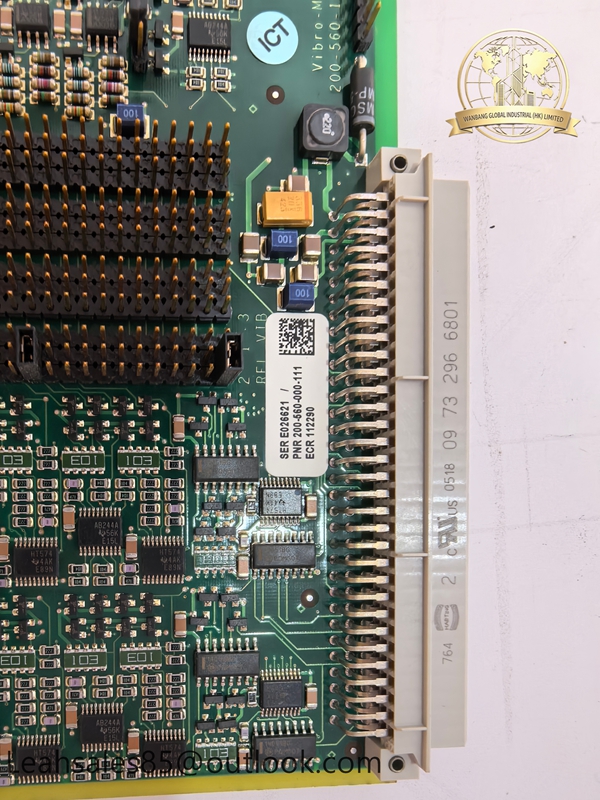

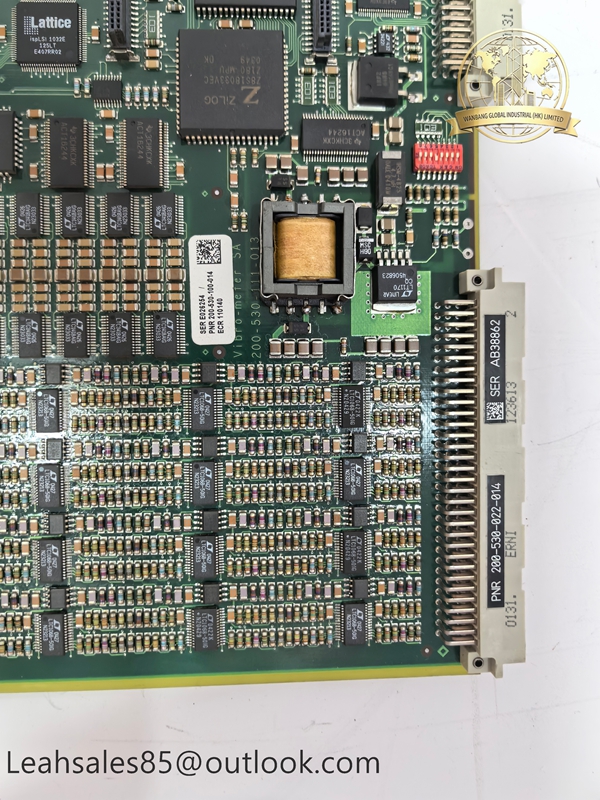

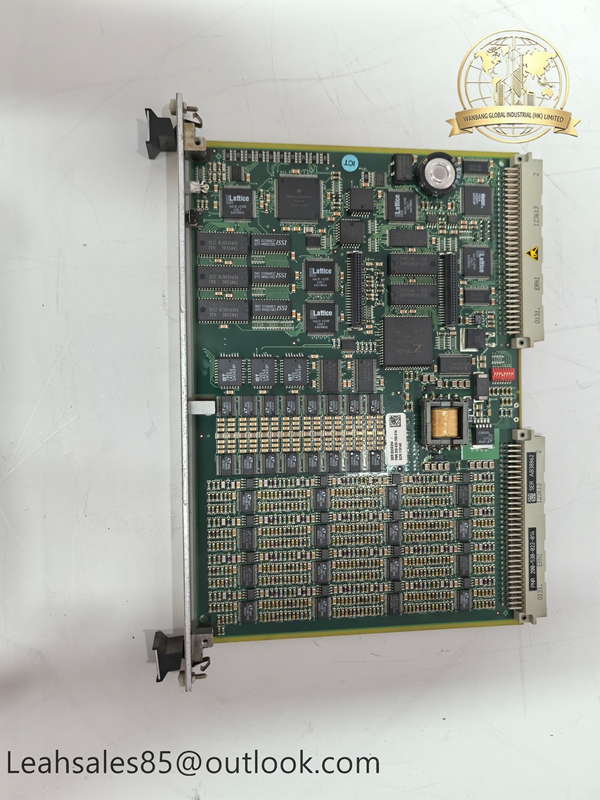

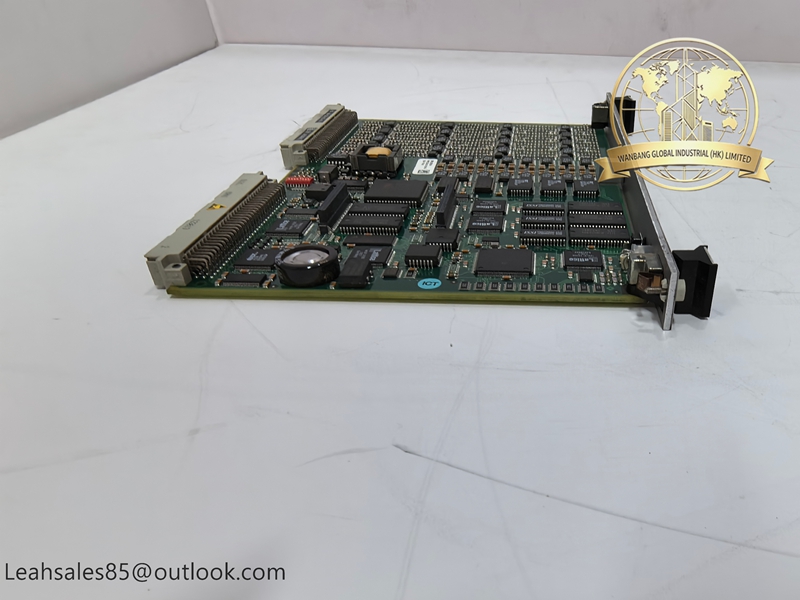

Vibro-Meter CMC16 200-530-111-013 is a 16-channel condition monitoring card for the Meggitt Vibro-Meter VM600 machinery protection system. It collects vibration, rotational speed, dynamic pressure and air gap signals from sensors, performs on-board FFT spectrum analysis and waveform capture. It provides machinery health diagnostic data for turbines, compressors and generators, supporting fault early warning, widely used for turbomachinery monitoring rack maintenance and spare parts replacement.

Key Features

• 16 independent programmable dynamic input channels

• First 4 channels configurable as tacho speed input

• Built-in parallel anti-aliasing filters and high-precision ADC

• Onboard FFT spectrum analysis for machinery diagnostic

• Hot-swap design for VM600 rack without system shutdown

• Supports Modbus TCP communication for upper system data upload

•


Technical Specifications

• Model: CMC16

• Part No: 200-530-111-013

• Brand: Vibro-Meter (Meggitt)

• Product Type: Condition Monitoring Card

• Compatible System: VM600 Machinery Monitoring System

• Power Supply: 24VDC

• Mounting: VM600 rack slot installation

•


Application Fields

• Steam turbine vibration monitoring system

• Gas turbine machinery health diagnosis

• Centrifugal compressor condition monitoring

• Power plant generator monitoring cabinet

• Petrochemical rotating equipment protection system
