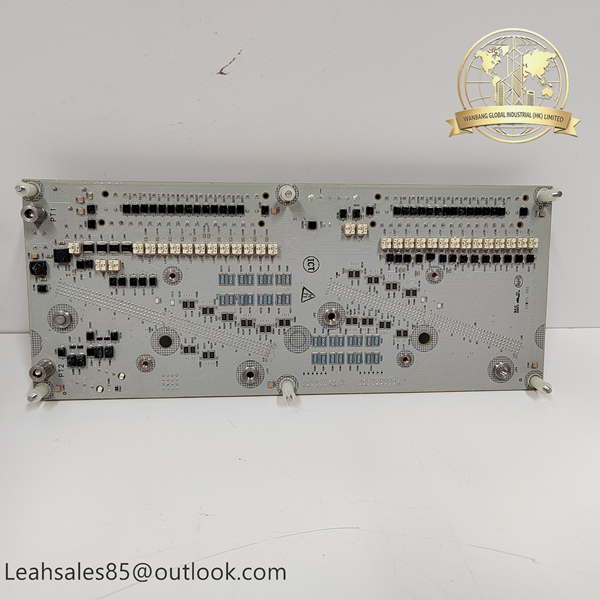

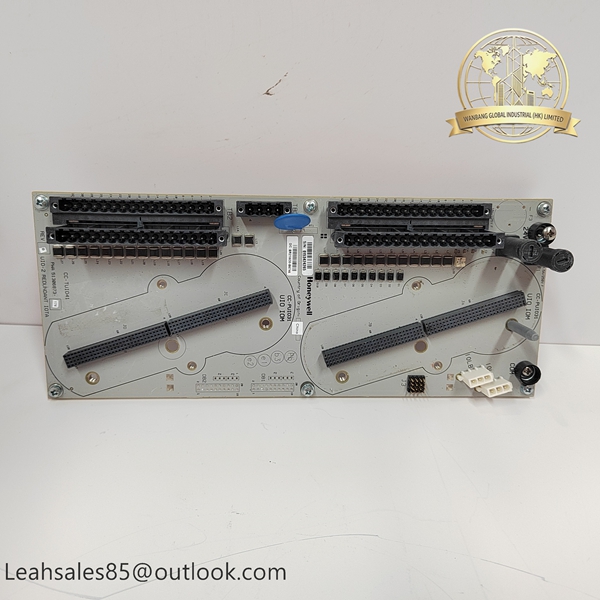

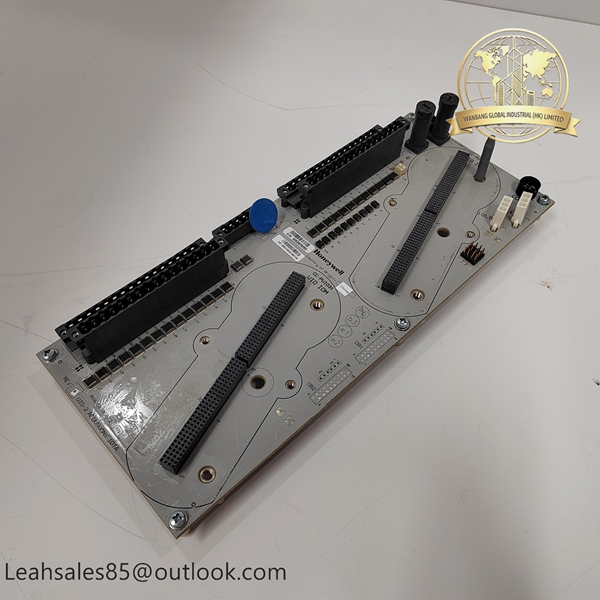

Honeywell CC-PUIO31 Universal I/O Module Experion Series C C300

Products Introduction

Honeywell CC-PUIO31 is a universal input/output module of Honeywell Experion Series C platform, matched with C300 controller. It has 32 software configurable channels, each channel can be flexibly set as analog input, analog output, digital input or digital output. It supports HART 7 communication and 1ms SOE sequence of event recording, greatly reducing spare parts types and cabinet wiring workload for process plants. It can be used with non-redundant CC-TUIO31 or redundant CC-TUIO41 terminal assemblies.

Key Features

32 independent software configurable channels, AI/AO/DI/DO flexible setup
Built-in HART 7 modem per channel, supporting smart instrument commissioning and diagnostics
1ms high-resolution SOE for digital input event capture
Electronic short-circuit protection, field short will not damage the module
Supports Zone 2 / Division 2 hazardous location application
Extended operating temperature range: -40℃ ~ +70℃
Supports redundant I/O link configuration to improve system availability
Integrated channel open wire detection and comprehensive self-diagnosis
One module covers multiple signal types, reduce spare stock
