Product Introduction

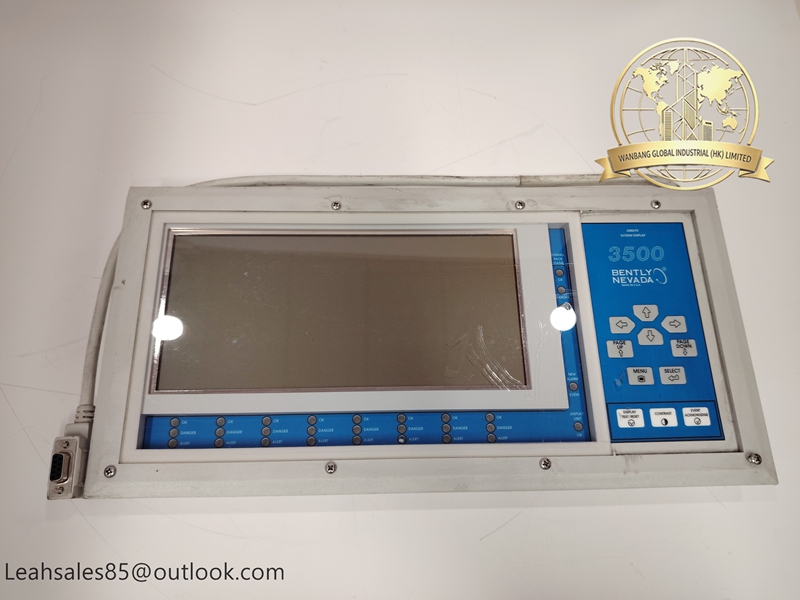

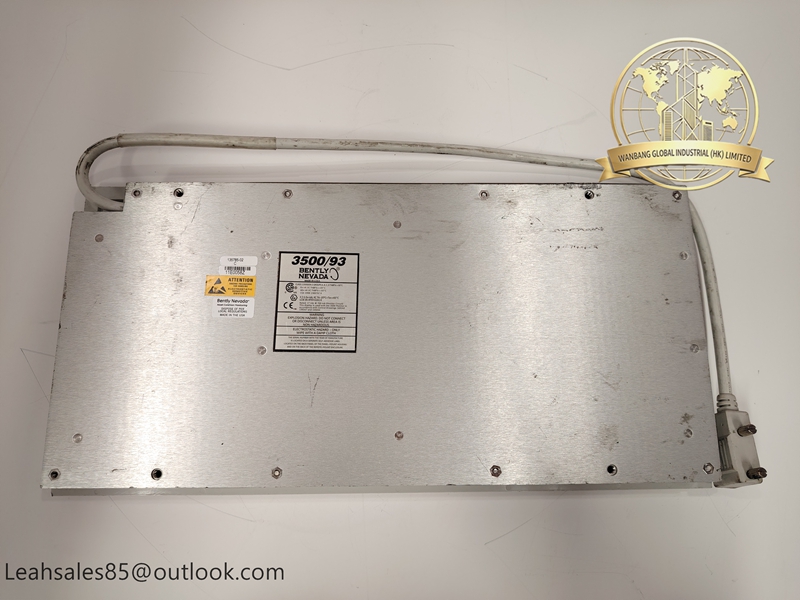

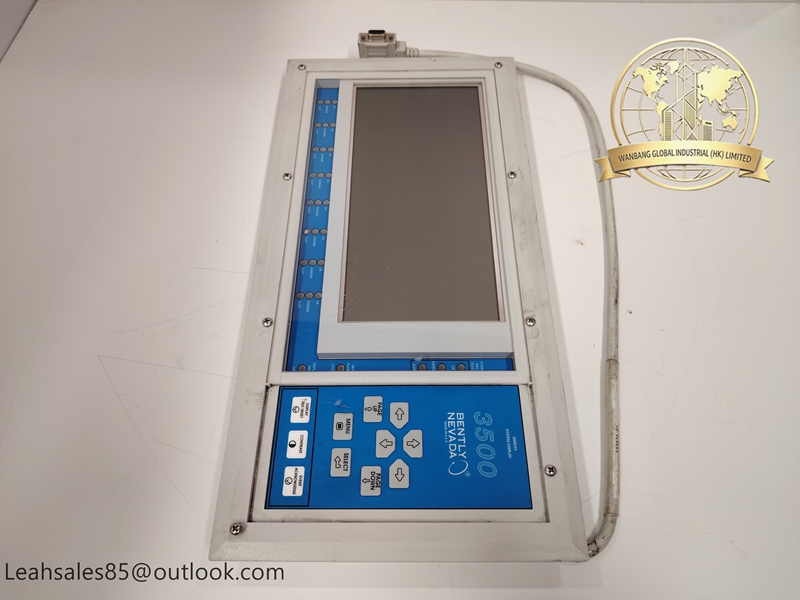

Bently 3500-93 135785-02C is a display interface module of Bently Nevada 3500 series machinery protection system. It serves as the local human-machine interface, used to read and display real-time monitoring data, alarm information and system event logs from the 3500 rack. It can be installed on the rack or remotely, helping on-site engineers check machine status without laptops.

Key Features

• Complies with API 670 machinery protection standard, suitable for rotating equipment monitoring

• Supports local and remote display, multiple installation modes available

• Shows channel data, alarm status, relay module, keyphasor and tachometer information

• Connects with 3500/22M rack interface module via dedicated communication cable

• Built-in status LED indicators for quick module fault diagnosis

• Each rack can be equipped with up to two 3500-93 display interface modules

Technical Specifications

• Model: 3500-93, Part No: 135785-02C

• Brand: Bently Nevada

• Communication: RS422, Bently proprietary protocol

• Refresh rate: Approx 1 second

• Power consumption: Max 15.5W

• Compatible system: Bently 3500 machinery protection rack

•


Application Fields

• Oil & gas, petrochemical industry

• Power plant steam turbines, generators

• Compressors, pumps, fans and other rotating machinery

• Industrial online vibration monitoring and protection system

• Refinery and plant machinery condition monitoring

Tags:

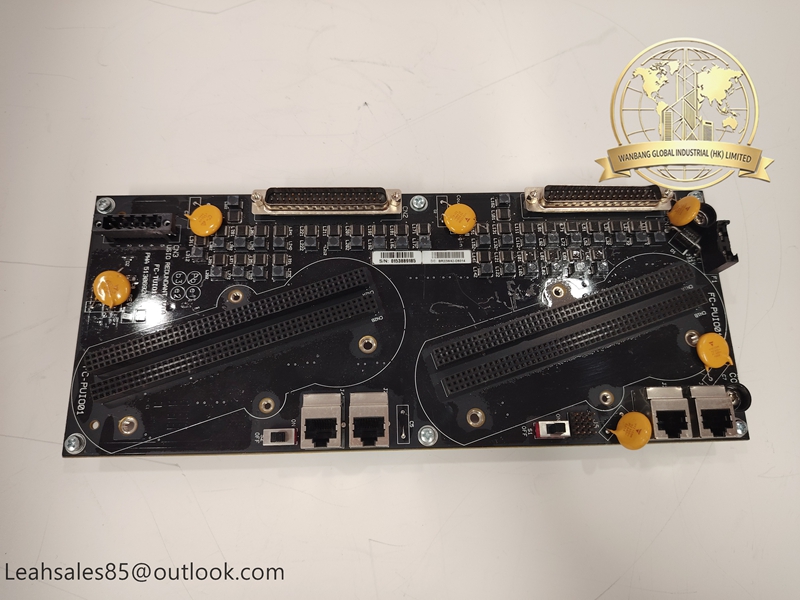

Honeywell FC-PUIO01 Universal

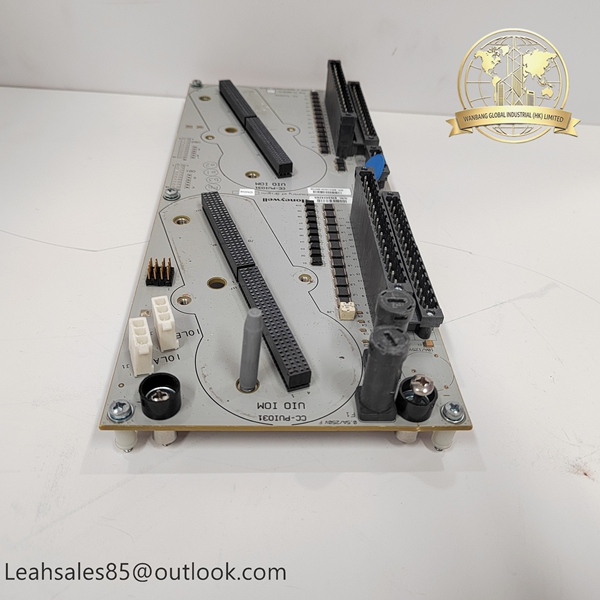

Honeywell CC-PUIO31 Universal

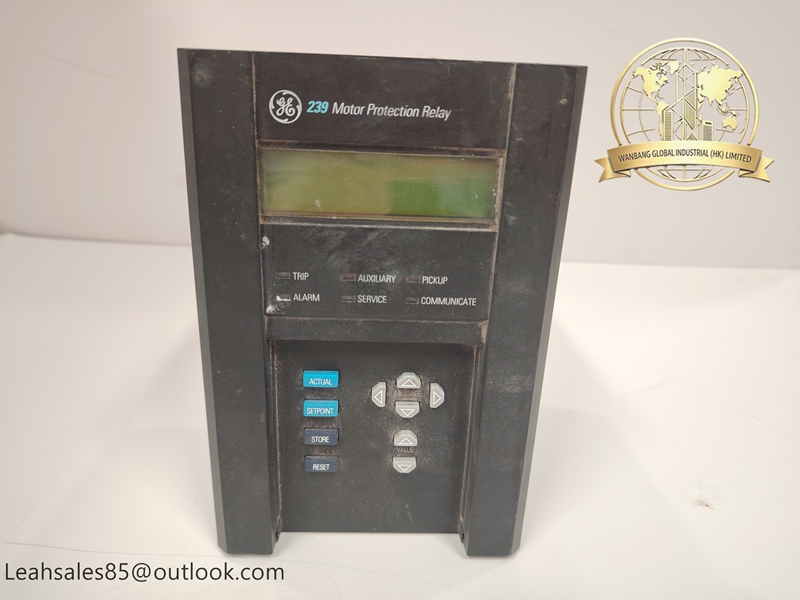

GE Multilin 239 Digital Motor

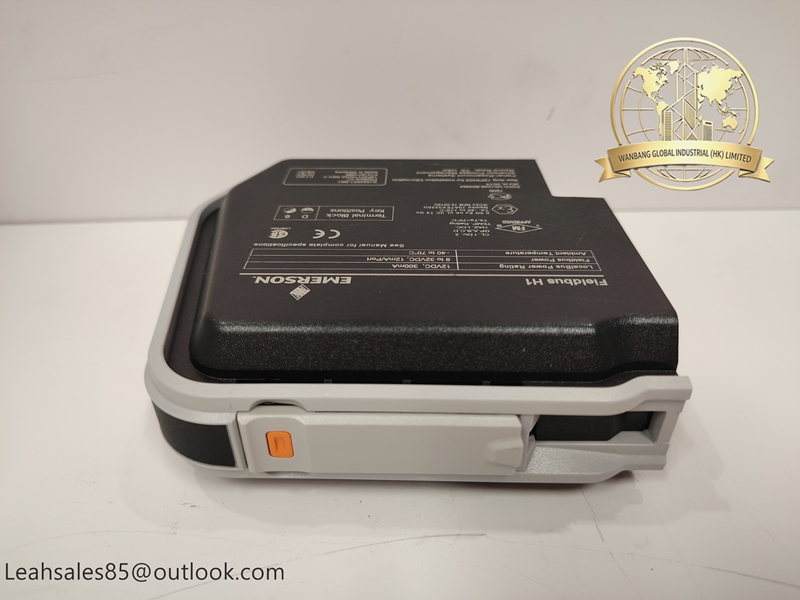

Emerson KJ3242X1-BK1 12P4711X0
