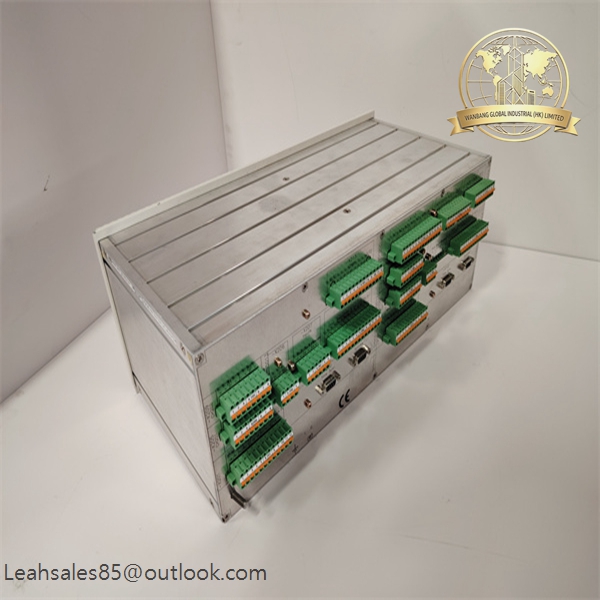

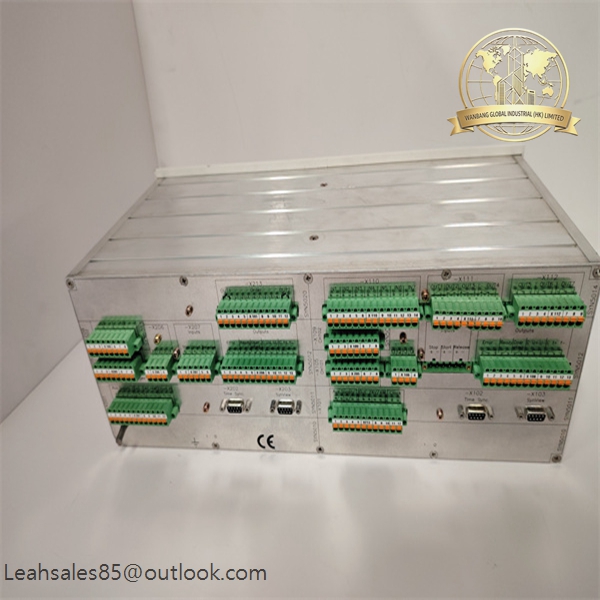

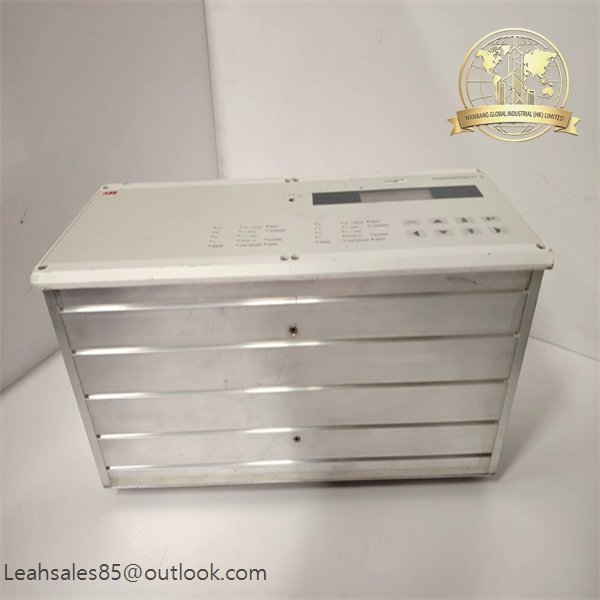

ABB 3BHB006716R0217 (SYN5302A-Z, V217) is a dedicated synchronization interface module belonging to ABB Unitrol excitation control and AC 800PEC / PCS6000 medium voltage converter platform. It is designed for high-precision phase detection, timing synchronization and pulse coordination between controllers and power converter bridges. It collects voltage and current signals, executes synchronizing logic, ensures generator and converter signals align with grid frequency and phase, widely deployed in generator excitation, wind power converters and medium voltage drive racks.

Key Features

• Model SYN5302A-Z, revision V217, part number 3BHB006716R0217

• High-speed phase and frequency synchronization for power electronics control

• Works with Unitrol excitation system, AC800PEC and PCS6000 converters

• Precise timing control for thyristor firing pulses

• Built-in signal isolation for voltage/current sampling channels

• Comprehensive module self-diagnosis and fault status output

• Rugged industrial board design for cabinet rack installation

• Optimized for generator paralleling and grid-tied converter control

• Supports high dynamic grid condition tracking

Technical Specifications

• Model: SYN5302A-Z

• Part No: 3BHB006716R0217

• Brand: ABB

• Series: Unitrol, AC800PEC, PCS6000

• Function: Synchronization & timing control module

• Firmware Version: V217

• Application: Generator excitation, medium voltage converter control

• Installation: Rack mount inside control cabinet

• Operating temperature: -20℃ ~ +70℃

• Designed for high-reliability power plant and energy conversion systems

Application Fields

• Power plant generator Unitrol excitation control systems

• PCS6000 medium voltage wind turbine converters

• Hydro and thermal power generator grid synchronization

• Medium voltage variable frequency drive control racks

• Synchronous motor excitation regulation

• Energy storage and grid-tied power converter systems

• Heavy industry captive power station control cabinets
